[플러터앱개발][오일스닥] 오피넷에서 주유소 가격 정보 가져와서 구글맵에 연동 하기 본문

개발일지

[플러터앱개발][오일스닥] 오피넷에서 주유소 가격 정보 가져와서 구글맵에 연동 하기

혼앱사 2022. 12. 12. 07:22
반응형

주유소 보관앱을 만들다보니 오피넷을 통해 가격정보를 가져와서 구글맵에 보여주는 기능을 제공하기로 했다.

오피넷 API 사이트에가서 API 승인을 받아야한다.

https://www.opinet.co.kr/user/main/mainView.do

싼 주유소 찾기 오피넷

www.opinet.co.kr



구글맵관련 dependencise 설정 해야한다.

  google_maps_flutter: ^2.2.1
  geolocator: ^9.0.2
  gridlocator: ^0.0.2

flutter pub get  google_maps_flutter   이런식으로 터미널창에서 가져올수있다. (플러터 개발 문서참조)

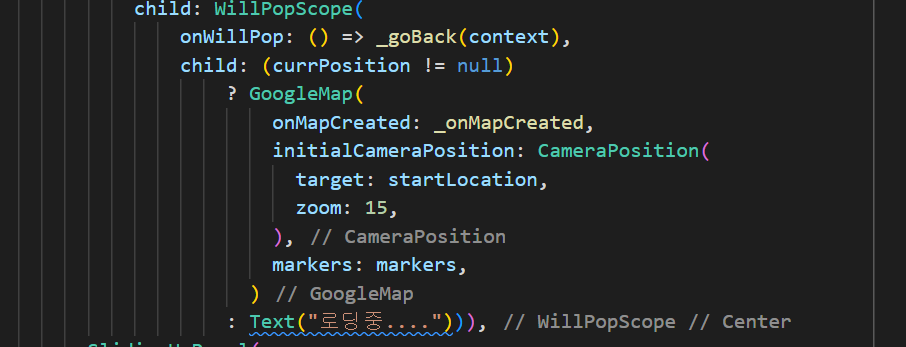

아래 처럼 구글맵을 설정하고

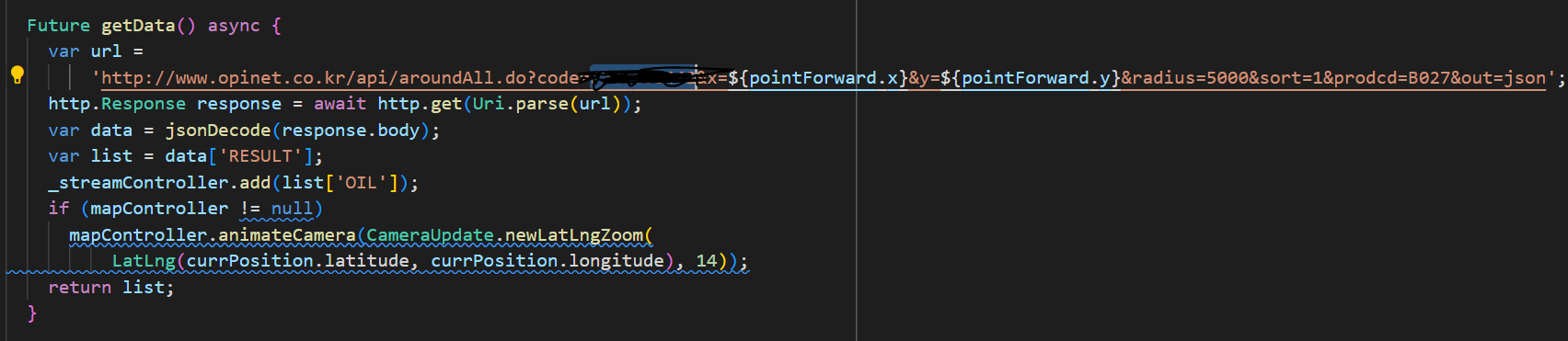

오피넷 데이터 가져오기 (코드값에 오피넷에서 받아온 코드값적용)

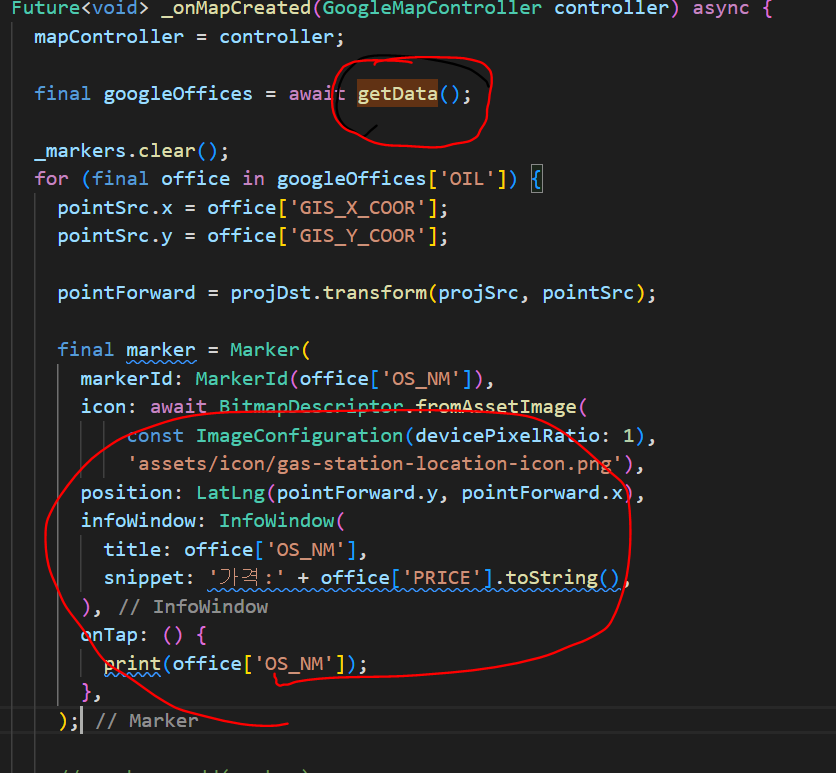

받아온 코드값을 화면에 뿌려줌

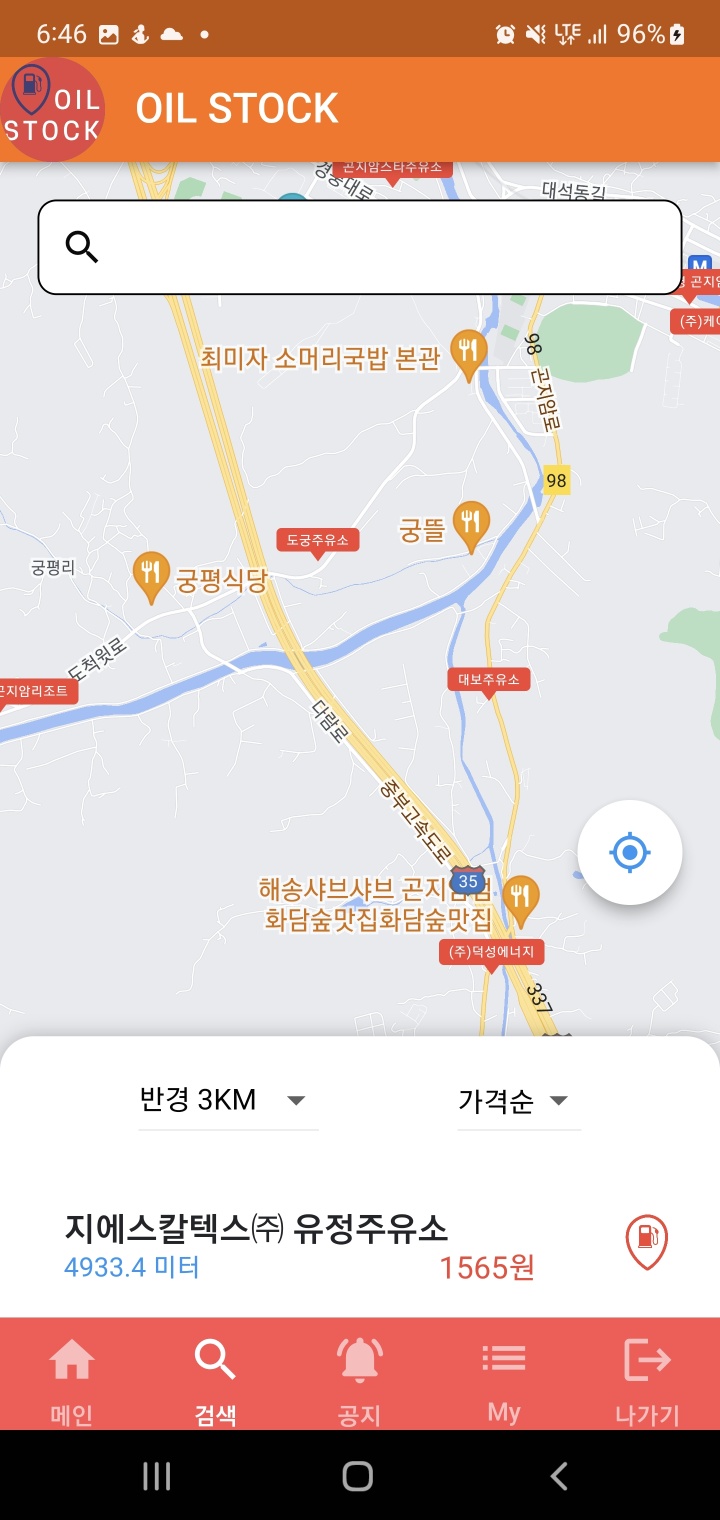

아래처럼 구글맵에 적용화면 이다.

f

받아온정보를 기반으로 리스트로 뿌려줌




아래 전체 소스를 참조해서 적용해보면 빠르다.

import 'dart:async';
import 'dart:convert';
import 'dart:io';
import 'dart:ui';
import 'package:cached_network_image/cached_network_image.dart';
import 'package:flutter/material.dart';
import 'package:flutter_webview_pro/webview_flutter.dart';
import 'package:geolocator/geolocator.dart';
import 'package:getwidget/components/list_tile/gf_list_tile.dart';
import 'package:google_maps_flutter/google_maps_flutter.dart';
import 'package:oilstock/views/image_view.dart';
import 'package:oilstock/views/oil_home.dart';
import 'package:oilstock/views/ship_main.dart';
import 'package:oilstock/main.dart';
import 'package:shared_preferences/shared_preferences.dart';
import 'package:url_launcher/url_launcher.dart';
import 'package:proj4dart/proj4dart.dart';
import '../widgets/map3.dart';
import '../widgets/map4.dart';
import 'package:sliding_up_panel/sliding_up_panel.dart';
import 'package:http/http.dart' as http;
import 'package:label_marker/label_marker.dart';

const String kNavigationExamplePage = '''
<!DOCTYPE html><html>
<head><title>Navigation Delegate Example</title></head>
<body>
<p>
The navigation delegate is set to block navigation to the youtube website.
</p>
<ul>
<ul><a href="https://www.youtube.com/">https://www.youtube.com/</a></ul>
<ul><a href="https://www.google.com/">https://www.google.com/</a></ul>
</ul>
</body>
</html>
''';

class OilMap extends StatefulWidget {
  final token;
  final user_id;
  const OilMap(this.token, this.user_id, {Key? key}) : super(key: key);

  @override
  _WebViewExampleState createState() => _WebViewExampleState();
}

Future<Position> getCurrentLocation() async {
  Position position = await Geolocator.getCurrentPosition(
      desiredAccuracy: LocationAccuracy.high);

  return position;
}

var currPosition = null;
Future<Position> currPo = getCurrentLocation();

class _WebViewExampleState extends State<OilMap> {
  late WebViewController _controller;
  final double _initFabHeight = 220.0;
  double _fabHeight = 500;
  double _panelHeightOpen = 500;
  double _panelHeightClosed = 150.0;
  late Map4 map;
  late GoogleMapController mapController;
  late AnimationController controller;
  LatLng startLocation = LatLng(37.351, 127.3385);
  final StreamController _streamController = StreamController();
  @override
  void initState() {
    super.initState();
    _fabHeight = _initFabHeight;
    currPo.then((value) => {
          setState(() {
            currPosition = value;
            googleMapInit();
          })
        });
    if (Platform.isAndroid) WebView.platform = SurfaceAndroidWebView();
  }

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      appBar: AppBar(
        backgroundColor: Colors.amber[900],
        title: const Text('OIL STOCK'),
        leading: CircleAvatar(
            maxRadius: 50.0,
            backgroundImage: AssetImage('assets/icon/launcher_icon_main.png')),

        // This drop down menu demonstrates that Flutter widgets can be shown over the web view.
        //  actions: <Widget>[
        //  NavigationControls(_controller.future),
        //   SampleMenu(_controller.future),
        //  ],
      ),
      // We're using a Builder here so we have a context that is below the Scaffold
      // to allow calling Scaffold.of(context) so we can show a snackbar.
      body: Builder(builder: (BuildContext context) {
        Future<bool> _goBack(BuildContext context) async {
          if (await _controller.canGoBack()) {
            _controller.goBack();
            return Future.value(false);
          } else {
            return Future.value(true);
          }
        }

        var document = [];

        return Stack(
          children: <Widget>[
            Center(
                child: WillPopScope(
                    onWillPop: () => _goBack(context),
                    child: (currPosition != null)
                        ? GoogleMap(
                            onMapCreated: _onMapCreated,
                            initialCameraPosition: CameraPosition(
                              target: startLocation,
                              zoom: 15,
                            ),
                            markers: markers,
                          )
                        : Text("로딩중...."))),
            SlidingUpPanel(
              maxHeight: _panelHeightOpen,
              minHeight: _panelHeightClosed,
              parallaxEnabled: true,
              parallaxOffset: .5,
              borderRadius: BorderRadius.only(
                  topLeft: Radius.circular(18.0),
                  topRight: Radius.circular(18.0)),
              onPanelSlide: (double pos) => setState(() {
                _fabHeight = pos * (_panelHeightOpen - _panelHeightClosed) +
                    _initFabHeight;
              }),
              panelBuilder: (sc) => _panel(sc),
            ),
            // the fab

            Positioned(
              right: 20.0,
              bottom: _fabHeight,
              child: FloatingActionButton(
                child: Icon(
                  Icons.gps_fixed,
                  color: Theme.of(context).primaryColor,
                ),
                onPressed: () {},
                backgroundColor: Colors.white,
              ),
            ),

            Positioned(
                top: 0,
                child: ClipRRect(
                    child: BackdropFilter(
                        filter: ImageFilter.blur(sigmaX: 10, sigmaY: 10),
                        child: Container(
                          width: MediaQuery.of(context).size.width,
                          height: MediaQuery.of(context).padding.top,
                          color: Colors.transparent,
                        )))),

            //the SlidingUpPanel Title
            Positioned(
                right: 20.0,
                width: MediaQuery.of(context).size.width - 40,
                top: 20.0,
                child: TextField(
                    textAlignVertical: TextAlignVertical.bottom,
                    style: const TextStyle(
                        color: Colors.black,
                        height: 0.5,
                        fontSize: 20.0,
                        letterSpacing: 0,
                        decoration: TextDecoration.none),
                    decoration: InputDecoration(
                      filled: true, //<-- SEE HERE
                      fillColor: Colors.white,
                      prefixIcon: Icon(
                        Icons.search,
                        color: Color.fromARGB(255, 10, 10, 10),
                      ),
                      border: OutlineInputBorder(
                          borderSide:
                              BorderSide(width: 0, color: Colors.black)),
                      focusedBorder: OutlineInputBorder(
                          borderRadius: BorderRadius.circular(10.0),
                          borderSide:
                              BorderSide(width: 0, color: Colors.black)),
                      enabledBorder: OutlineInputBorder(
                        borderRadius: BorderRadius.circular(10.0),
                        borderSide: BorderSide(width: 1, color: Colors.black),
                      ),
                    ))),
          ],
        );
      }),
    );
  }

  Point pointForward = new Point(x: 0, y: 0);
  //var pointSrc = Point(x: 314996.15900, y: 544938.50758);
  late Point pointSrc = new Point(x: 0, y: 0);
  // Use built-in projection
  Projection projSrc = Projection.get('WGS84') ??
      Projection.add(
        'WGS84',
        '+proj=longlat +ellps=WGS84 +datum=WGS84 +no_defs',
      );

  // Find Projection by name or define it if not exists
  var projDst = Projection.get('TM128') ??
      Projection.add(
        'TM128',
        '+proj=tmerc +lat_0=38 +lon_0=128 +k=0.9999 +x_0=400000 +y_0=600000 +ellps=bessel +units=m +no_defs +towgs84=-115.80,474.99,674.11,1.16,-2.31,-1.63,6.43',
      );

  void googleMapInit() {
    pointSrc = Point(x: currPosition.longitude, y: currPosition.latitude);

    pointForward = projSrc.transform(projDst, pointSrc);
    getData();
  }

  Future getData() async {
    var url =
        'http://www.opinet.co.kr/api/aroundAll.do?code=XXXXXXX&x=${pointForward.x}&y=${pointForward.y}&radius=5000&sort=1&prodcd=B027&out=json';
    http.Response response = await http.get(Uri.parse(url));
    var data = jsonDecode(response.body);
    var list = data['RESULT'];
    _streamController.add(list['OIL']);
    if (mapController != null)
      mapController.animateCamera(CameraUpdate.newLatLngZoom(
          LatLng(currPosition.latitude, currPosition.longitude), 14));
    return list;
  }

  Set<Marker> markers = {};
  final Map<String, Marker> _markers = {};
  Future<void> _onMapCreated(GoogleMapController controller) async {
    mapController = controller;

    final googleOffices = await getData();

    _markers.clear();
    for (final office in googleOffices['OIL']) {
      pointSrc.x = office['GIS_X_COOR'];
      pointSrc.y = office['GIS_Y_COOR'];

      pointForward = projDst.transform(projSrc, pointSrc);

      final marker = Marker(
        markerId: MarkerId(office['OS_NM']),
        icon: await BitmapDescriptor.fromAssetImage(
            const ImageConfiguration(devicePixelRatio: 1),
            'assets/icon/gas-station-location-icon.png'),
        position: LatLng(pointForward.y, pointForward.x),
        infoWindow: InfoWindow(
          title: office['OS_NM'],
          snippet: '가격:' + office['PRICE'].toString(),
        ),
        onTap: () {
          print(office['OS_NM']);
        },
      );

      // markers.add(marker);

      //_markers[office['OS_NM']] = marker;
      markers
          .addLabelMarker(LabelMarker(
        label: office['OS_NM'].toString(),
        icon: await BitmapDescriptor.fromAssetImage(
            const ImageConfiguration(devicePixelRatio: 2.5),
            'assets/icon/gas-station-location-icon.png'),
        markerId: MarkerId(office['OS_NM']),
        position: LatLng(pointForward.y, pointForward.x),
        backgroundColor: Colors.red,
        infoWindow: InfoWindow(
          title: office['OS_NM'],
          snippet: '가격:' + office['PRICE'].toString(),
        ),
      ))
          .then((value) {
        setState(() {});
      });
    }
  }

  Widget _panel(ScrollController sc) {
    return MediaQuery.removePadding(
        context: context,
        removeTop: true,
        child: ListView(
          controller: sc,
          children: <Widget>[
            SizedBox(
              height: 10.0,
            ),
            Row(
              mainAxisAlignment: MainAxisAlignment.spaceEvenly,
              children: <Widget>[
                DropdownButton<String?>(
                  style: TextStyle(color: Color.fromARGB(255, 4, 4, 4)),
                  onChanged: (String? newValue) {
                    print(newValue);
                    setState(() {
                      if (mapController != null)
                        mapController.animateCamera(CameraUpdate.newLatLngZoom(
                            LatLng(
                                currPosition.latitude, currPosition.longitude),
                            14));
                    });
                  },
                  items: [null, 'M', 'F']
                      .map<DropdownMenuItem<String?>>((String? i) {
                    return DropdownMenuItem<String?>(
                      value: i,
                      child:
                          Text({'M': '반경 10KM', 'F': '반경 20KM'}[i] ?? '반경 3KM'),
                    );
                  }).toList(),
                ),
                DropdownButton<String?>(
                  style: TextStyle(color: Color.fromARGB(255, 6, 6, 6)),
                  onChanged: (String? newValue) {
                    print(newValue);
                    setState(() {
                      if (mapController != null)
                        mapController.animateCamera(CameraUpdate.newLatLngZoom(
                            LatLng(
                                currPosition.latitude, currPosition.longitude),
                            14));
                    });
                  },
                  items: [null, 'M', 'F']
                      .map<DropdownMenuItem<String?>>((String? i) {
                    return DropdownMenuItem<String?>(
                      value: i,
                      child: Text({'M': '평가순', 'F': '거리순'}[i] ?? '가격순'),
                    );
                  }).toList(),
                ),
              ],
            ),
            Ink(
              color: Colors.white,
              height: 400,
              width: double.infinity,
              child: StreamBuilder(
                stream: _streamController.stream,
                builder: (BuildContext context, AsyncSnapshot snapshot) {
                  if (snapshot.hasData) {
                    return ListView(
                      children: snapshot.data.map<Widget>((document) {
                        return GFListTile(
                            color: Colors.white,
                            titleText: document['OS_NM'],
                            subTitle: Row(
                              children: [
                                SizedBox(
                                  width: 200,
                                  child: Text(
                                      document['DISTANCE'].toString() + " 미터",
                                      style: TextStyle(
                                          fontSize: 13, color: Colors.blue)),
                                ),
                                Text(
                                  document['PRICE'].toString() + "원",
                                  style: TextStyle(
                                      fontSize: 15, color: Colors.red),
                                ),
                              ],
                            ),
                            //subTitleText: document['주소'],
                            icon: Image.asset(
                                'assets/icon/gas-station-location-icon.png',
                                width: 30,
                                height: 30,
                                color: Colors.red));
                      }).toList(),
                    );
                  }
                  return const Text('Loading...');
                },
              ),
            ),
            SizedBox(
              height: 36.0,
            ),
            /*
            Container(
              padding: const EdgeInsets.only(left: 24.0, right: 24.0),
              child: Column(
                crossAxisAlignment: CrossAxisAlignment.start,
                children: <Widget>[
                  Text("Images",
                      style: TextStyle(
                        fontWeight: FontWeight.w600,
                      )),
                  SizedBox(
                    height: 12.0,
                  ),
                  Row(
                    mainAxisAlignment: MainAxisAlignment.spaceBetween,
                    children: <Widget>[
                      CachedNetworkImage(
                        imageUrl:
                            "https://images.fineartamerica.com/images-medium-large-5/new-pittsburgh-emmanuel-panagiotakis.jpg",
                        height: 120.0,
                        width: (MediaQuery.of(context).size.width - 48) / 2 - 2,
                        fit: BoxFit.cover,
                      ),
                      CachedNetworkImage(
                        imageUrl:
                            "https://cdn.pixabay.com/photo/2016/08/11/23/48/pnc-park-1587285_1280.jpg",
                        width: (MediaQuery.of(context).size.width - 48) / 2 - 2,
                        height: 120.0,
                        fit: BoxFit.cover,
                      ),
                    ],
                  ),
                ],
              ),
            ),

            SizedBox(
              height: 36.0,
            ),
            Container(
              padding: const EdgeInsets.only(left: 24.0, right: 24.0),
              child: Column(
                crossAxisAlignment: CrossAxisAlignment.start,
                children: <Widget>[
                  Text("About",
                      style: TextStyle(
                        fontWeight: FontWeight.w600,
                      )),
                  SizedBox(
                    height: 12.0,
                  ),
                  Text(
                    """Pittsburgh is a city in the state of Pennsylvania in the United States, and is the county seat of Allegheny County. A population of about 302,407 (2018) residents live within the city limits, making it the 66th-largest city in the U.S. The metropolitan population of 2,324,743 is the largest in both the Ohio Valley and Appalachia, the second-largest in Pennsylvania (behind Philadelphia), and the 27th-largest in the U.S.\n\nPittsburgh is located in the southwest of the state, at the confluence of the Allegheny, Monongahela, and Ohio rivers. Pittsburgh is known both as "the Steel City" for its more than 300 steel-related businesses and as the "City of Bridges" for its 446 bridges. The city features 30 skyscrapers, two inclined railways, a pre-revolutionary fortification and the Point State Park at the confluence of the rivers. The city developed as a vital link of the Atlantic coast and Midwest, as the mineral-rich Allegheny Mountains made the area coveted by the French and British empires, Virginians, Whiskey Rebels, and Civil War raiders.\n\nAside from steel, Pittsburgh has led in manufacturing of aluminum, glass, shipbuilding, petroleum, foods, sports, transportation, computing, autos, and electronics. For part of the 20th century, Pittsburgh was behind only New York City and Chicago in corporate headquarters employment; it had the most U.S. stockholders per capita. Deindustrialization in the 1970s and 80s laid off area blue-collar workers as steel and other heavy industries declined, and thousands of downtown white-collar workers also lost jobs when several Pittsburgh-based companies moved out. The population dropped from a peak of 675,000 in 1950 to 370,000 in 1990. However, this rich industrial history left the area with renowned museums, medical centers, parks, research centers, and a diverse cultural district.\n\nAfter the deindustrialization of the mid-20th century, Pittsburgh has transformed into a hub for the health care, education, and technology industries. Pittsburgh is a leader in the health care sector as the home to large medical providers such as University of Pittsburgh Medical Center (UPMC). The area is home to 68 colleges and universities, including research and development leaders Carnegie Mellon University and the University of Pittsburgh. Google, Apple Inc., Bosch, Facebook, Uber, Nokia, Autodesk, Amazon, Microsoft and IBM are among 1,600 technology firms generating \$20.7 billion in annual Pittsburgh payrolls. The area has served as the long-time federal agency headquarters for cyber defense, software engineering, robotics, energy research and the nuclear navy. The nation's eighth-largest bank, eight Fortune 500 companies, and six of the top 300 U.S. law firms make their global headquarters in the area, while RAND Corporation (RAND), BNY Mellon, Nova, FedEx, Bayer, and the National Institute for Occupational Safety and Health (NIOSH) have regional bases that helped Pittsburgh become the sixth-best area for U.S. job growth.
                  """,
                    softWrap: true,
                  ),
                ],
              ),
            ),

                */
            SizedBox(
              height: 24,
            ),
          ],
        ));
  }

  Widget _button(String label, IconData icon, Color color) {
    return Column(
      children: <Widget>[
        Container(
          padding: const EdgeInsets.all(16.0),
          child: Icon(
            icon,
            color: Colors.white,
          ),
          decoration:
              BoxDecoration(color: color, shape: BoxShape.circle, boxShadow: [
            BoxShadow(
              color: Color.fromRGBO(0, 0, 0, 0.15),
              blurRadius: 8.0,
            )
          ]),
        ),
        SizedBox(
          height: 12.0,
        ),
        Text(label),
      ],
    );
  }
}
728x90
반응형

'개발일지' 카테고리의 다른 글

기아 니로 2017 스마트키 저출력 잠금장치 잘 안돼서 밧데리 교체  (0) 2023.01.10
자동차 밧데리 교체 기아 니로 하이브리드 2017  (0) 2022.12.19
[개발일지] 프리랜서 프로젝트 참여를 위한 구직사이트&나의 생각  (0) 2022.12.08
[개발자 일상] 주말 김장담그기 좋은날 12월 추운날 김장하기  (0) 2022.12.05
[개발자 일상] 자가 밧데리 교체 더 뉴 파트스 7세대 TSI  (0) 2022.12.05
'개발일지' Related Articles more
Comments
